China National Heavy Duty Truck Group Co., Ltd

Semi trailer

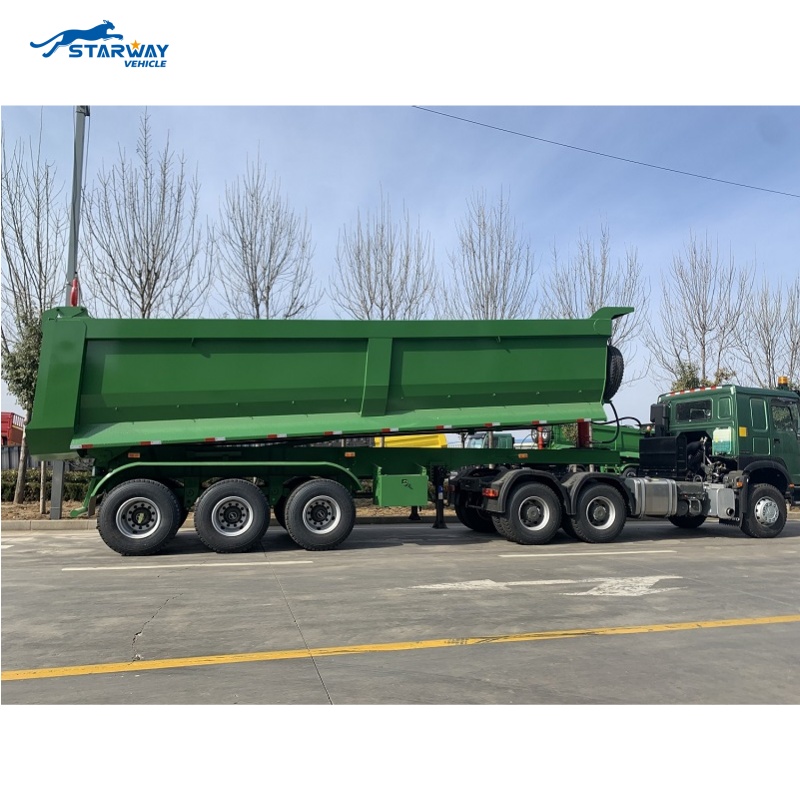

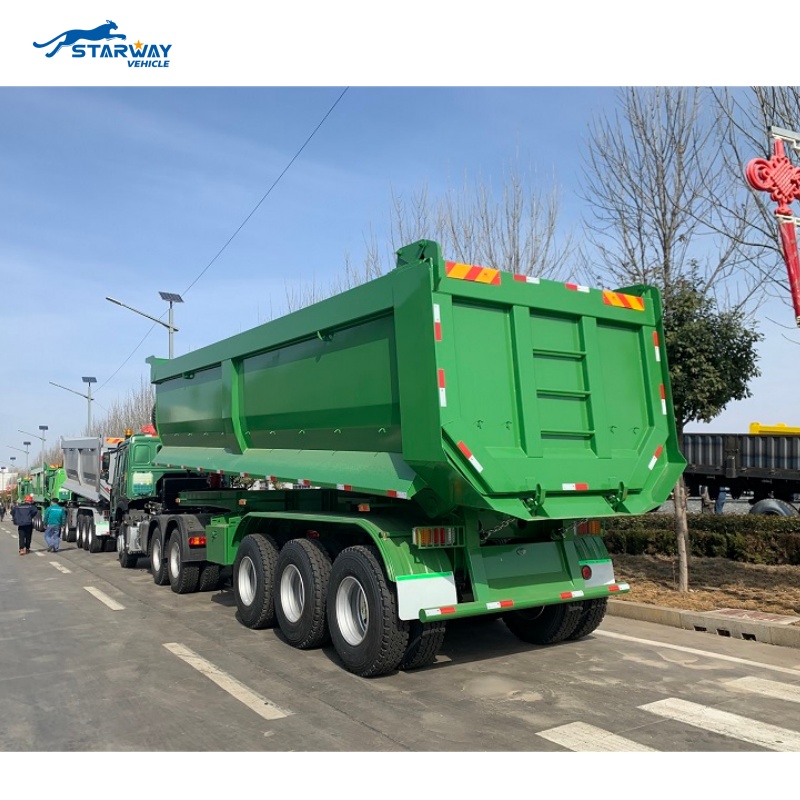

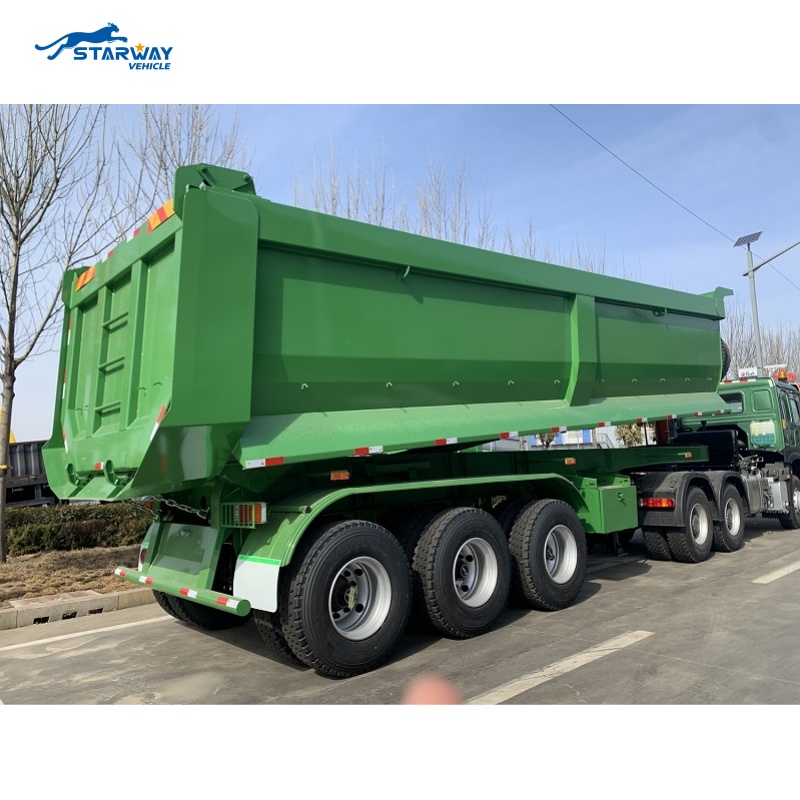

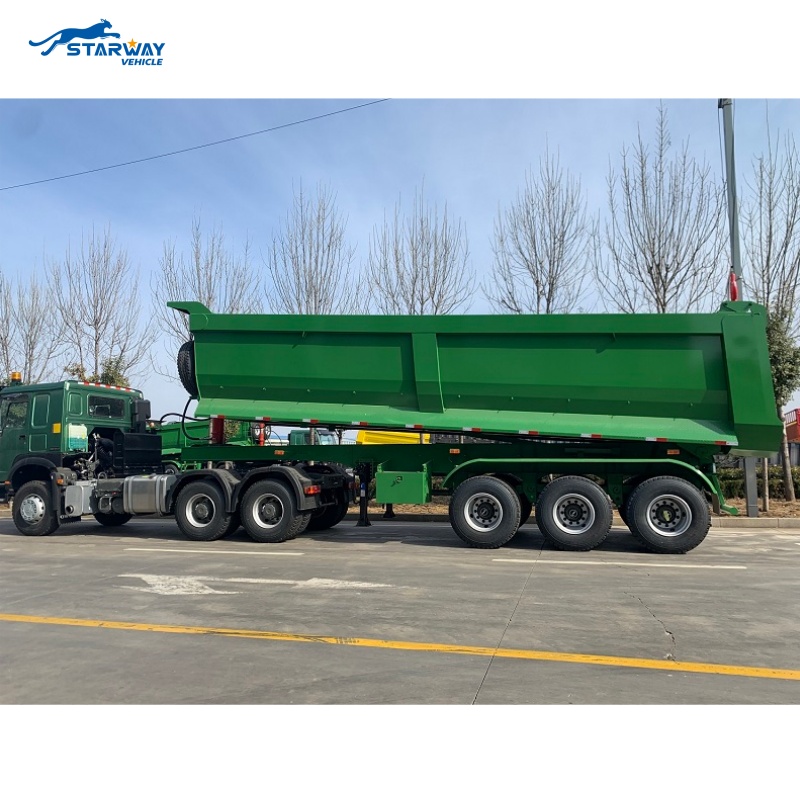

3 Axles U Type Tipper/Dump Truck Trailer With HYVA hydraulic

3 axles U type Tipper/Dump Semi Trailer With HYVA system :Widely used to transport sand, stone, coal and other solid building materials or industrial raw materials. Rear dump semi-trailers are designed to make unloading easier. After the back of the trailer is locked, sand can be loaded. When it arrives at the destination, the front side of the semi-trailer can be raised, which makes the goods drop from the back. The bucket of the trailer requires a thicker steel plate, because the goods are often hard materials, and the steel plate can prevent the cargo from damaging the trailer.

Category

Specifications

Dimensions: 98,000mm * 2,500mm * 3,800mm (Standard Dimensions, Customizable)

Payload: 70 tons, Customizable

Axles: 3 axles * 13/16T, Customizable

Dump Style: Rear Dump, Customizable to Side Dump

Cylinder: HYVA (model depends on container length)

Main Beam Material: Q345/T700

Tires: 11.00R20/12R22.5 * 8/12/16 pieces

Suspension: Mechanical or Air Suspension

Leaf Springs: 90mm*16mm*10 pieces

Landing Gear: 28T, Two-speed, JOST

King Pin: #50(2″)/#90(3.5″), JOST/other brands

Additional Customizable Options: Paint process, ABS, Reflective Tape, LED lights, etc.
